# SQL Server

1. Login to `WEB01` as the `Administrator` user with password `Welcome01!`.
2. Download SQL Server 2019 from [Microsoft Evaluation Center](https://www.microsoft.com/en-us/evalcenter/evaluate-sql-server-2019).

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FDlkzu7tkmSLUzcDNJKk6%2Fimage.png?alt=media&#x26;token=93f77e51-ab65-4977-a0fc-0681f3fe285a" alt=""></div>

3\. When smartscreen comes up select "Run".

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FmjfjkuJNytcsYXCX6p1y%2Fimage.png?alt=media&#x26;token=007f0120-629b-42c6-835b-28c690507bff" alt=""></div>

{% hint style="info" %}
The SQL Server Installation may require internet access, temporally add a second adapter in the machine settings and select the NAT network. The machine should have internet access. (ps our first adapter is different since our lab runs on a ESXI host).

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F46Sj22Fv6O91HbPBzY2S%2Fimage.png?alt=media\&token=a3f89180-6a60-4099-9595-3ad6e1057c94)


{% endhint %}

4\. On "Select an installation type" select "Basic":

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2Fpee68sBozh1du1gtIN27%2Fimage.png?alt=media\&token=ef9d6bde-4902-42c7-a601-2bb2ea3edb18)

5\. Accept the License Terms and click "Install".

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FkzazOTdh9D2n75H85L1W%2Fimage.png?alt=media\&token=39545d1a-acca-4f03-a5e8-6353f1b69028)

6\. Once the installation is finished, click on "Customize".

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FPdX3DkaKCJS2sjWqS0WN%2Fimage.png?alt=media\&token=0322cb8e-e9a8-46bf-9595-155d3b13f7bd)

7\. Check "Use Microsoft Update to check for updates" and click next till the step "License Terms" and accept them:

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FrPdcIUCSqTanbOcpkvaQ%2Fimage.png?alt=media\&token=462b2ffc-2da8-4231-979a-50074238e7fa)

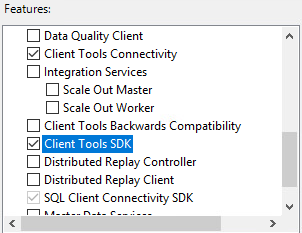

8\. At the step "Feature Selection" choose the following options:

* Database ENgine Services
* SQL Server Replication
* Client Tools Connectivity
* Client Tools SDK

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FWB5mjPePrpHhfMk4SWAW%2Fimage.png?alt=media\&token=c1a1bb51-d02b-4ac6-b966-bb1576a79c4e)

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FDbWovZdMLHJ9OtYwM41Q%2Fimage.png?alt=media&#x26;token=e81a0317-83c9-4d63-82b3-bfcd0f1a0570" alt=""></div>

9\. Click Next and fill in the Instance name `dev`.

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F7jbwEEwgJ7TD34qAaI9M%2Fimage.png?alt=media\&token=d4ca8d98-f64f-4dd5-b7b8-ed17f6857cdd)

10\. Change the "Startup Type" for the "SQL Serer Agent" to "Automatic" and make sure all three are set to "Automatic", click "Next".

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FVAbkwAVXz4johONvfSoN%2Fimage.png?alt=media\&token=006fba7d-815e-485f-9034-a128fc26836a)

11\. At the next step select "Mixed Mode" and fill in the password `Password1!`. Then select "Add" at the "Specify SQL Server administrators" and add `amsterdam\administrator` then click Next.

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FTUBqMA7soGha8QpSq0gK%2Fimage.png?alt=media\&token=200892ec-89dc-4c9b-b3e6-11756ae3fb81)

12\. Click "Install" and wait for the installation to finish.

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FMaLZ3RnZFNHvUCzU0OZD%2Fimage.png?alt=media\&token=f3ed2174-5c5a-4b17-9832-57f25ac0d4ec)

13\. Open the "SQL Configuration Manager".

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2Fewvhr2QvjqnxmM2Z9zuG%2Fimage.png?alt=media\&token=0fe1bb0f-7eeb-4d8b-a5db-d79adae60c5e)

13\. Expand "SQL Server Network Configuration" and select "Protocols for DEV". Double click on "TCP/IP" and select the "IP Addresses" tab. Fill in `1433` for "TCP Port".

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FKSk7FeqDcOiY2y5ekWQQ%2Fimage.png?alt=media&#x26;token=d0afd45c-5806-4c8b-ba87-79768e27abcb" alt=""></div>

14\. Scroll to the bottom and also configure IPAll:

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FVG7IXvLl04zOyeroHzrt%2Fimage.png?alt=media&#x26;token=fecf357a-7b6b-4191-bd75-7e391c89a4a0" alt=""></div>

14\. Then click "Apply".

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FQne6v1FuVuqW47rDDSa8%2Fimage.png?alt=media&#x26;token=446ad87d-9eae-43d7-a59b-c3c67524c161" alt=""></div>

15\. Open "SQL Server services" and right click on "SQL Server (DEV)" and click "Restart".

![](https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F2qxxNGdDCQUHty9bmkBh%2Fimage.png?alt=media\&token=2e74e2fa-a428-408f-9ada-302187cc5aa1)

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F9MnbxRyjc1QqvxsfbEt6%2Fimage.png?alt=media&#x26;token=9976a9fa-982a-4446-959a-8f32375cb18b" alt=""></div>

16\. Do the same for "SQL Server Agent":

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2Fr27dVZj4AFIrGuGN4c15%2Fimage.png?alt=media&#x26;token=763ce4a9-60b5-47d9-bedf-5938b6835ccd" alt=""></div>

17\. Download and Install [SQL Server Mangement Studio](https://docs.microsoft.com/en-us/sql/ssms/download-sql-server-management-studio-ssms?redirectedfrom=MSDN\&view=sql-server-ver15). Just Click "Install" and reboot the system.



### Configuring Windows Firewall for SQL Server

1. Search for "Windows Defender Firewall with Advanced Security" and select "Windows Defender Firewall with Advanced Security"

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FRXMnT1Jk9YTAT0BUUexx%2Fimage.png?alt=media&#x26;token=213f8715-b103-4836-9aec-da08a3dd0cf4" alt=""></div>

2\. Rightclick on "Inbound Rules" and select "New rule".

3\. Select "Port" and click "Next"

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F44XeseDszUIvDgxSQYo6%2Fimage.png?alt=media&#x26;token=9188f8ea-16ef-43e8-ad0e-27bf99322a97" alt=""></div>

4\. Make sure "TCP" is selected and fill in port `1433` and click "Next":

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2FIvusvGWvo7aAcem3KhjJ%2Fimage.png?alt=media&#x26;token=c54b8542-8294-4544-b88d-fa54eece16c9" alt=""></div>

5\. Click next at the step "Profile". Fill in the name "Allow TCP 1433 MSSQL Server for all" and click "Finish":

<div align="left"><img src="https://1033393870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FPqGbN7FCY7Xh4OkOtvin%2Fuploads%2F7JNjBMm7xnEZQxADn2I1%2Fimage.png?alt=media&#x26;token=a7cda269-4df1-41e7-9a16-d10c4eec07e5" alt=""></div>

6\. When done remove the "NAT" adapter from the virtual machine.

### Testing connectivity

1\. Open the Kali machine and run a quick Nmap to check if the port is open:

```
sudo nmap -p 1433 10.0.0.5 -Pn -n

Starting Nmap 7.92 ( https://nmap.org ) at 2022-03-06 11:39 CET
Nmap scan report for 10.0.0.5
Host is up (0.017s latency).

PORT     STATE SERVICE
1433/tcp open  ms-sql-s

Nmap done: 1 IP address (1 host up) scanned in 0.12 seconds
```
